10D1

Sensibly equivalent to:
2D13C ARDD1 CV1300 CV1418 DD13 ZD
See also:
Brimar Ten Times Tested Advert

Extras ▼

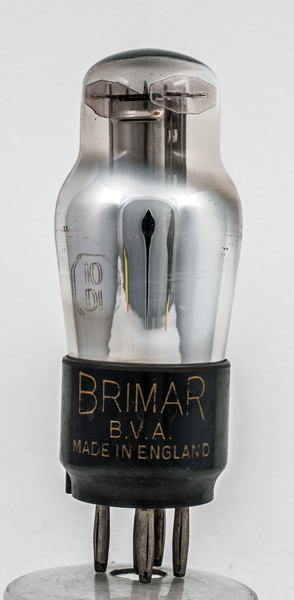

This double diode appears to have a cylindrical anode, but in fact the visible cylinder is a screen strapped internally to the cathode. Within the screen are two small anodes mounted vertically around the cathode.

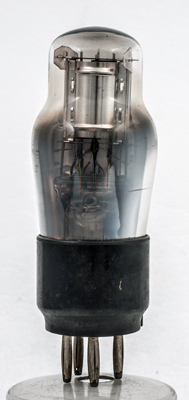

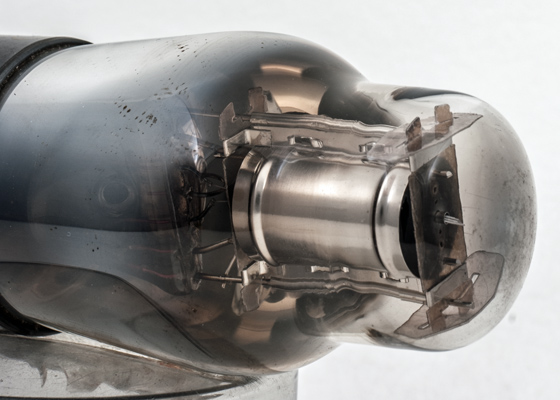

The bright screen with stitched side flanges.
The heater has four insulated strands within the cathode tube.
The classic envelope is 38 mm in diameter and, excluding the B5 base pins, is 90 mm tall.
References: Datasheet & 1043. Type 10D1 was first introduced in 1936.



Pin Connections
B5
1
2
3
4
5
a(1)
a(2)
h
h
k



Absolute Maximum Operating Conditions
Diode
Vh
Ah
Va
mAa
13.0
0.2
50
8.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 23, 2018.
shape:classic construction:pinch type:double.diode age:1930.1940 base:b5 heater:200ma pins:5 pin:1.a(1) pin:2.a(2) pin:3.h pin:4.h pin:5.k
