T20

Sensibly equivalent^¶ to:

CV3722

See also:

Taylor Tubes T20 Box

Extras ▼

Taylor Tubes G8LSD Valve Collection Other T20 exhibits

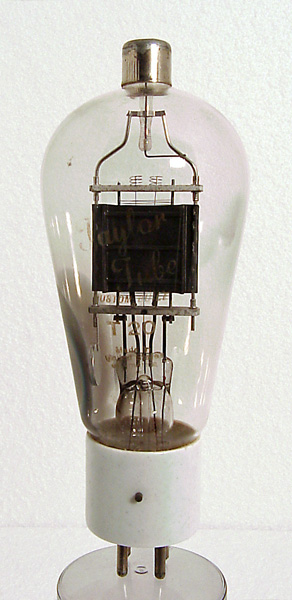

The Taylor tubes were American transmitting valves built for reliability. They were conservatively rated for a long life. This valve was designed for use up into the low VHF region at 60 MHz. The ratings given are for both CW and phone. For AM service as a class C amplifier the output was 38 Watts, for CW use the power rose to 44 Watts. The peak grid current was 25 mA fully driven. With an amplification factor of 20, a drive level of 3.6 W was specified for full output.

The classic envelope is 57 mm in diameter and, excluding the UX4 base pins, is 140 mm tall.

References: Data-sheet & ¹⁰¹⁶.

Pin Connections

UX4	1	2	3	4	tc
	f	nc	g1	f	a

Absolute Maximum Operating Conditions^¶

Triode	Vh	Ah	Va	Vg	mAa	Pdiss	freq
	7.5	1.75	750	-	85	20W	60MHz

Thanks to Frank Philipse for supplying the above PDF datasheet.
