30FL14

Sensibly equivalent to:
PCF808

Extras ▼

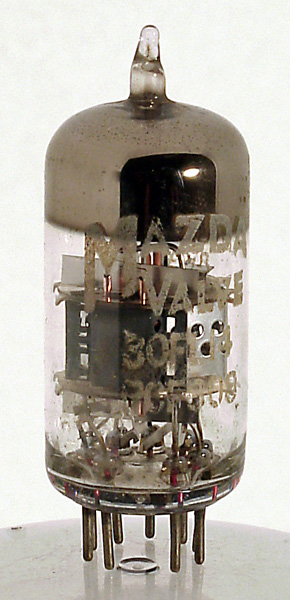

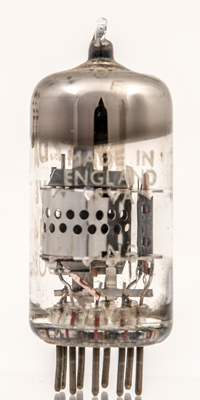

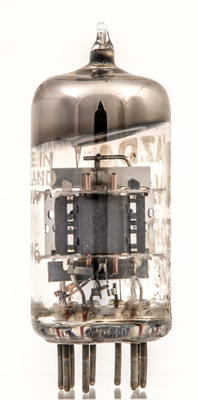

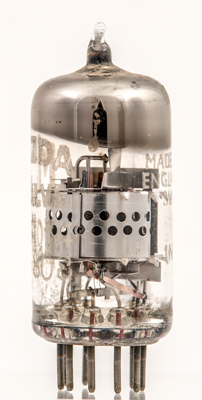

The 30FL14 triode pentode offers high voltage gain in a screened design. It was probably designed for VHF television use. The PCF808 is a direct equivalent.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 47 mm tall.
Reference: 1040.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(t)
g2
a
h
h
k,g3,s
g1
k(t)
g1(t)



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
7.4
0.3
160
160
-1.7
12
4
0.4M
14.5
Updated April 07, 2013.
shape:thin.glass.tube construction:all.glass type:triode.pentode age:1950.1960 base:b9a heater:300ma pins:9 pin:1.a(t) pin:2.g2 pin:3.a pin:4.h pin:5.h pin:6.k.g3.s pin:7.g1 pin:8.k(t) pin:9.g1(t)
