6F13

Sensibly equivalent^¶ to:

CV1839

See also:

New Receiving Valves - Mazda 6F13 Advert, May 1949

Extras ▼

Mazda G8LSD Valve Collection

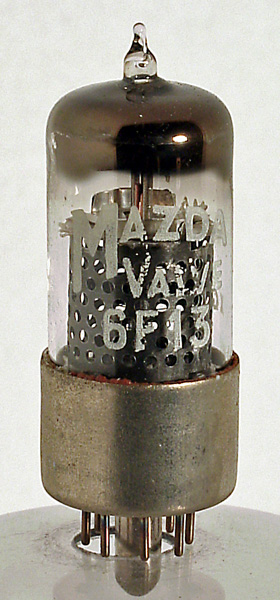

For the 6F13 the Mazda box contained the following description:

'An HF pentode for use in HF, IF, frequency changer or video output stages of television and other short wave receivers

The 6F13 was part of an expansion of valves designed for the emerging television market.

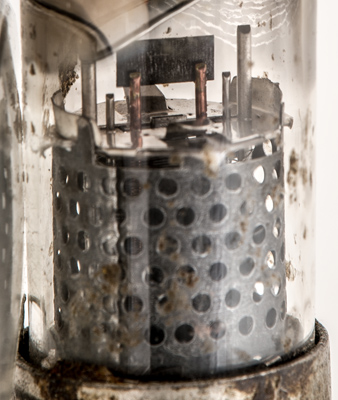

The thin glass tube envelope is 20 mm in diameter and, excluding the B8A base pins, is 51 mm tall.

References: Data-sheet & ¹⁰⁴⁰. Type 6F13 was first introduced in 1948. See also 1948 adverts.

Pin Connections

B8A	1	2	3	4	5	6	7	8
	h	a	s	g3	g2	g1	k	h

Absolute Maximum Operating Conditions^¶

Pentode	Vh	Ah	Va	Vs	Vg	mAa	mAs	ra	gm
	6.3	0.35	200	200	-1.8	10.0	2.6	0.9M	9.0

Thanks to Frank Philipse for supplying the above PDF datasheet.
