6F1

Sensibly equivalent to:
CV3841

Extras ▼

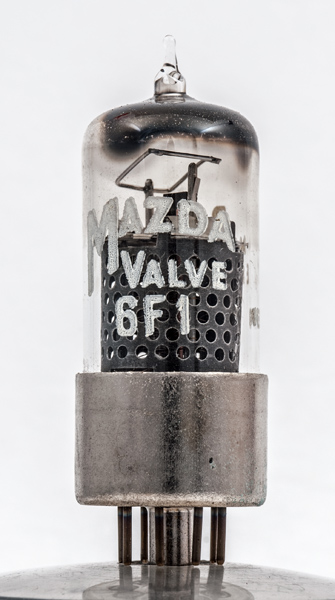

The 6F1 is an amplifying pentode. Mazda used a locating spigot for the B8A base, Mullard moved to a locating pip for the B8A valves.
This is an early example as it has the original metal skirt and spigot. Later versions from all manufacturers adopted the all glass version with the side pip for location into the base.

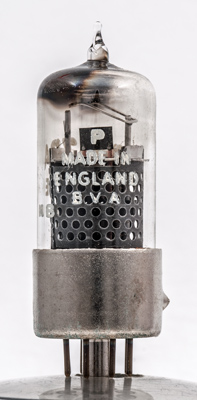

Made in England. The outer screen hides the inner structure.
The thin glass tube envelope is 20 mm in diameter and, excluding the B8A base pins and spigot is 55 mm tall.
References: Data-sheet, 3002 & 1040. Type 6F1 was first introduced in 1950. See also 1950 adverts.



Pin Connections
B8A
1
2
3
4
5
6
7
8
h
a
g3,s
g2
k
g1
k
h



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.35
200
200
-1.8
10
2.6
0.9M
9.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 28, 2017.
