ECL84

Sensibly equivalent to:
6DX8

Extras ▼

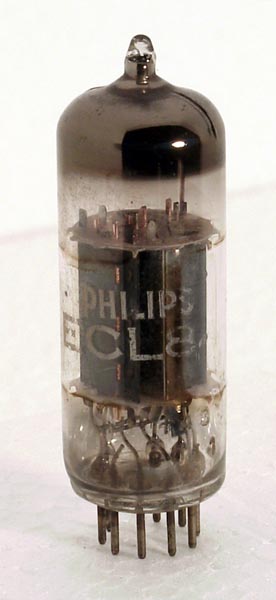

The Philips ECL84 is a triode output pentode amplifier designed for class A1 use.
The triode section was designed for a variety of uses including sync separation. The pentode was designed for use as a video output stage. Introduced in 1958 when the UK had a 405 line VHF television service and a video bandwidth of 3 MHz maximum.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 58 mm tall.
References: Data-sheet & 1040. Type ECL84 was first introduced in 1958. See also 1958 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
g1(t)
a(t)
k(t)
h
h
a
k,g3,s
g1
g2



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
6.3
0.72
200
-1.7
3.0



Absolute Maximum Operating Conditions
Pentode
Va
Vs
Vg
mAa
220
220
-3.4
18
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated March 29, 2013.
