25Z5

Sensibly equivalent to:
CV555
See also:
Philco 25Z5 Box

Extras ▼



The 25Z5 is an American TV rectifier. Within the envelope, sharing a common heater, are two independent rectifiers. The heater current of 0.3 Amps is one of the standard heater chain currents.
The independent rectifiers make three configurations possible: the pair as a full wave rectifier, the pair to produce 250 V from 117 V mains in voltage doubler configuration, and lastly in parallel as a half wave rectifier.
The maximum reservoir capacitor is quoted at 16 µF.
See also 25Z6G and 25Z6GT for IO based versions.
The twin rectifiers. The folded anode plates are stitched together.
An edge on view of the top of one anode. Note how the plates grip the support rod at the stitches and not at the top. The mica is bent as the assembly is pushed into the shoulder of the envelope and the grip prevents internal vibration.

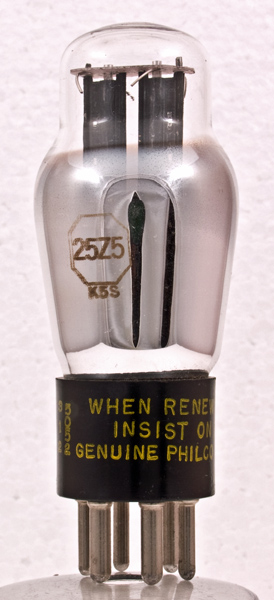

The classic envelope is 38 mm in diameter and, excluding the UX6 base pins, is 87 mm tall.
References: Data-sheet & 1040. Type 25Z5 was first introduced in 1936. See also 1936 adverts.



Pin Connections
UX6
1
2
3
4
5
6
h
a(2)
k(2)
k(1)
a(1)
h



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
25
0.3
235
150
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated November 14, 2013.
