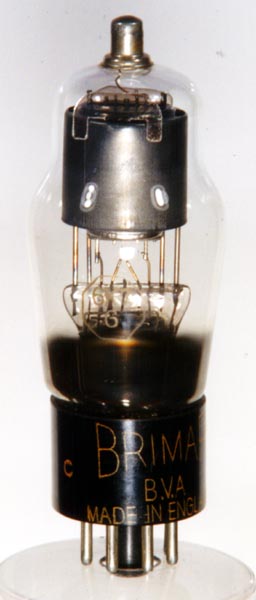

The 6K7G is a screened pentode and was designed for intermediate frequency amplifiers in superhet receivers. It is high impedance type allowing for a high Q in the tuned anode circuit. See also 6K7 metal envelope version and 6K7GT.

The classic envelope is 37 mm in diameter and, excluding the IO base pins the valve is 95 mm tall.


Pin Connections

IO	1	2	3	4	5	6	7	8
	m	h	a	g2	g3	nc	h	k


Absolute Maximum Operating Conditions

Pentode	Vh	Ah	Va	Vs	Vg	mAa	mAs	ra	gm
	6.3	0.3	250	125	-3	10.5	2.6	0.6M	1.65

Thanks to Frank Philipse for supplying the above datasheet
