14A7

Sensibly equivalent to:
12B7 CV3935
See also:
American Loctal Valves

Extras ▼

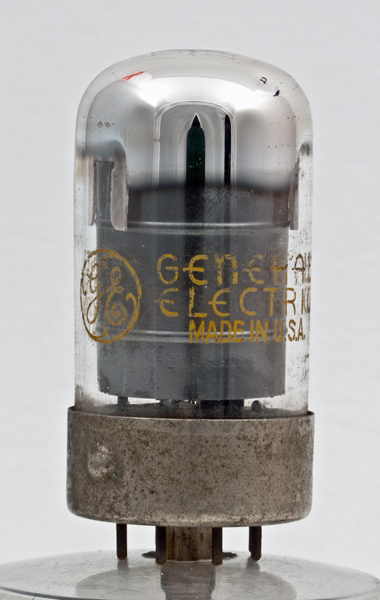

The 14A7 is an early all glass construction pentode. The central spigot hides the evacuation seal. The 7A7 is identical except for having a 6.3 Volt heater.
This variable μ valve was designed for high gain signal amplification, at RF and IF in broadcast receivers.
Electrically the 7A7 and 14A7 are similar to the IO based 6K7GT and 6SK7GT.
The dome carries the 14A7 Type designation and the alternate 12B7.
The wide glass tube envelope is 29 mm in diameter and, excluding the B8B base pins, is 57 mm tall.
References: Data-sheet & 4059. Type 14A7 was first introduced in 1940. See also 1940 adverts.



Pin Connections
B8B
1
2
3
4
5
6
7
8
h
a
g2
g3
s
g1
k
h



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
12.6
0.15
250
100
-3
9.2
2.6
0.8M
2
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated September 25, 2019.
