CV1931

Sensibly equivalent to:
6H6GT
See also:
The 6H6 Diode Family

Extras ▼



The CV1931 (commercially the 6H6 double signal diode. The low anode current is reflected in the low heater power.

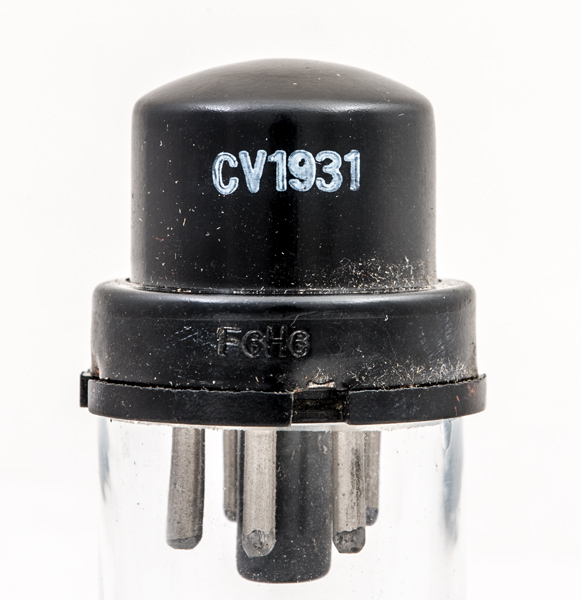

The base has 6H6 stamped into it.

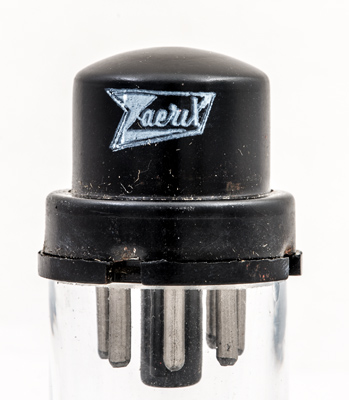

The reseller Zaerix logo.
The Thin Metal tube envelope is 25 mm in diameter and excluding the IO base pins the valve is 30 mm tall.
References: Data-sheet & 1040.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a(2)
k(2)
a(1)
nc
h
k



Absolute Maximum Operating Conditions
Diode
Vh
Ah
Va
mAa
6.3
0.3
150
8
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated March 14, 2026.
