CV1966

Sensibly equivalent to:
6SA7
See also:
Pentagrid Converters - Replacing a Triode Hexode

Extras ▼

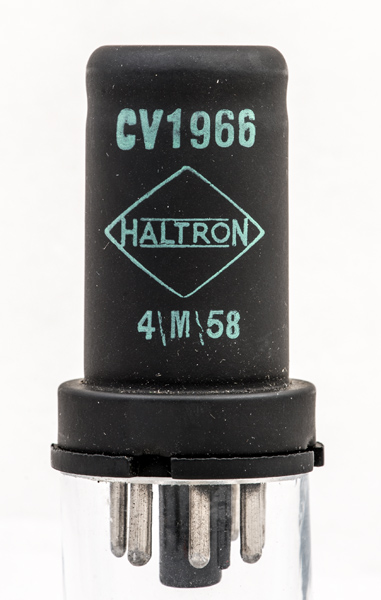

The CV1966 (commercially the 6SA7) is a heptode designed as a self oscillating mixer for radio reception. The heptode is known in America as a Pentagrid converter.

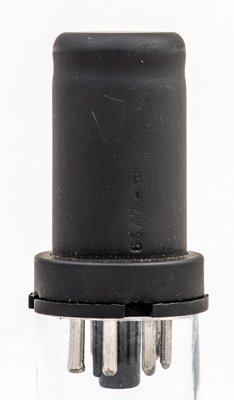

Stamped into the metal can is the original Type designation of 6SA7.
The thin metal tube envelope is 25 mm in diameter and, excluding the IO base pins, is 51 mm tall.
References: Data-sheet, 1040 & 1043. Type CV1966 was first introduced in 1937. See also 1937 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
m,g5
h
a
g2,g4
g1
k
h
g3



Absolute Maximum Operating Conditions
Heptode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
100
-2
3.5
8.5
1M
0.45
Thanks to Frank Philipse for supplying the above PDF datasheet.
