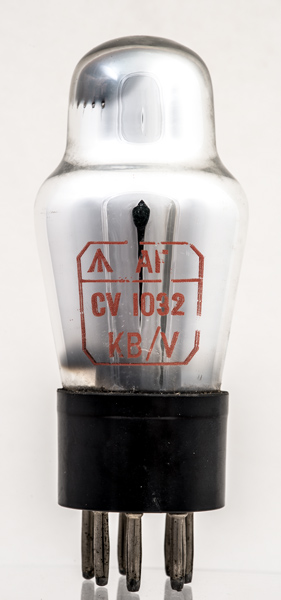

The CV1032 is the Common Valve name for the AR16 and the VR32 all based on the Cossor 220B. This is a Class B audio power amplifier.The KB/V identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the V identifies the maker as Cossor, Highbury, pre Sept 1945.

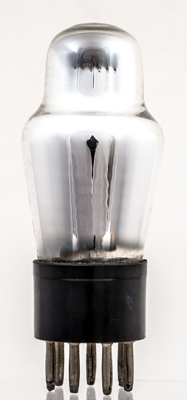

The gettering hides all internal parts.The classic envelope is 44 mm in diameter, and excluding the B7 base pins is 95 mm tall.Reference: Data-sheet. |
