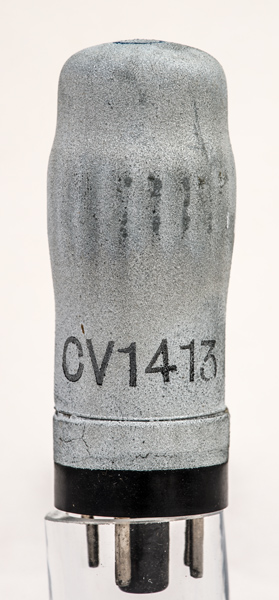

The CV1413 (commercially the UU6) full wave rectifier was produced from 1938 by Mazda and this exhibit shows the typical Mazda envelope and metallising.

Essentially the UU6 is a UU4 on an MO base. See UU6 for internal structure. Quite why they decided to metallise these rectifiers remains a mystery but the only obvious consequence was that they tended to overheat until the metallising corrected the problem by flaking off! This series of rectifiers was not as robust as the stalwart UU5, at least until the 1950s when Mazda seem to have realised that domestic HT rectifiers do not need metallisation.

The maximum reservoir capacitor has to be 16 µF.

See also UU7.

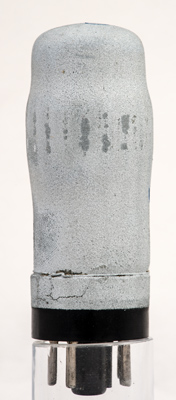

The reverse is plain zinc loaded paint.

The classic envelope is 32 mm in diameter and, excluding the MO base pins, is 78 mm tall.

References: Data-sheet, ¹⁰⁴⁰ & ¹⁰⁴³.

Pin Connections

Absolute Maximum Operating Conditions^¶

Thanks to Frank Philipse for supplying the above PDF datasheet.
