CV1882Sensibly equivalent¶ to:See also:
|
|
|

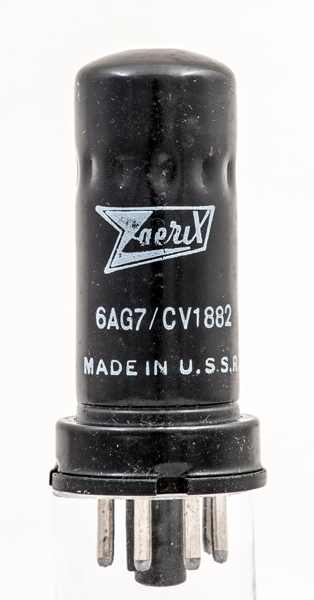

The CV1882 (commercially the 6AG7) is an American designed metal valve designed for single ended audio output stages.Zaerix were a reseller and as the envelope states this valve was made in the USSR. It certainly would not have been labelled CV1882 originally.

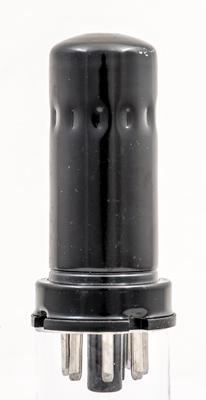

The steel can is painted to resist corrosion.The thin metal tube envelope is 25 mm in diameter and, excluding the IO base pins, is 67 mm tall.References: Data-sheet, 1040 & 1043. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |  g3 | h | m | g1 | k | g2 | h | a |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | ra | gm | Pout | D |
| 6.3 | 0.65 | 300 | 150 | -3 | 30 | 7 | 130K | 11 | 3W | 7% |
|
Updated July 12, 2025.
|
|
