CV1121Sensibly equivalent¶ to:
|
|
|

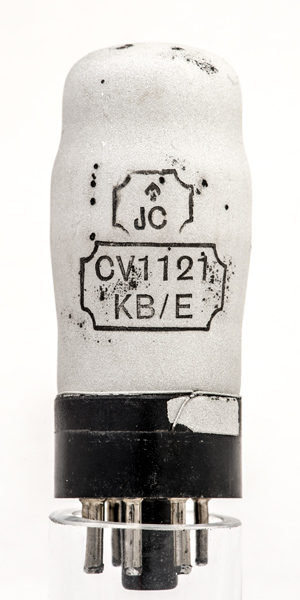

The CV1121 is a Thyratron based on the Mazda T41. The old service code is VGT121.The KB/E identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the E identifies the maker as Thorn-AEI, Brimsdown.

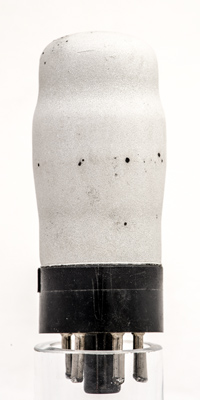

The reverse is plain zinc loaded paint.The classic envelope is 32 mm in diameter, and excluding the MO base pins is 72 mm tall.Reference: Data-sheet. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |  h | k | a | nc | g1 | m | nc | h |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | mAa | f.max |
| 4.0 | 1.5 | 400 | 500 | 0.02 |
|
