CV1586Sensibly equivalent¶ to:
|
|
|

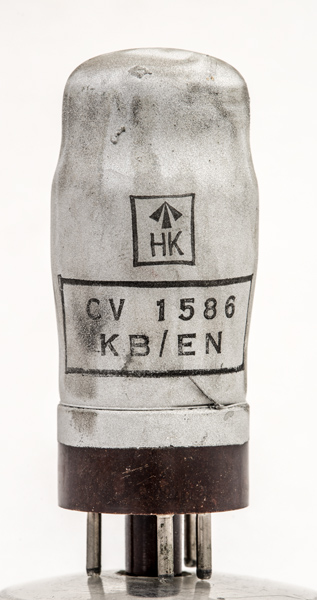

The CV1586 is a receiver triode and the prototype was the Mazda HL23.The KB/EN identifies this valve as being made to specification K1001 or K1006 and the EN identifies the maker as Thorn-AEI, Sunderland.

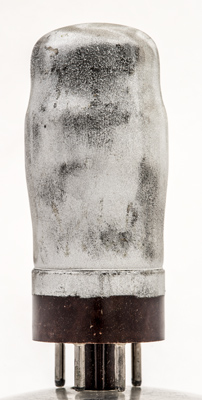

The reverse is just screening paint.The classic envelope is 32 mm in diameter and, excluding the MO base pins, is 70 mm tall.Reference: Data-sheet. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |  f | nc | a | nc | g1 | m | nc | f |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vg | mAa | ra | gm |
| 2.0 | 0.05 | 150 | -2.4 | 1.5 | 21,000 | 1.5 |
|
Updated June 09, 2025.
|
|
