CV1699

Sensibly equivalent to:
POVT150 SP41

Extras ▼



The CV1699 (commercially the SP41) is an RF pentode. The old GPO code is POVT150.

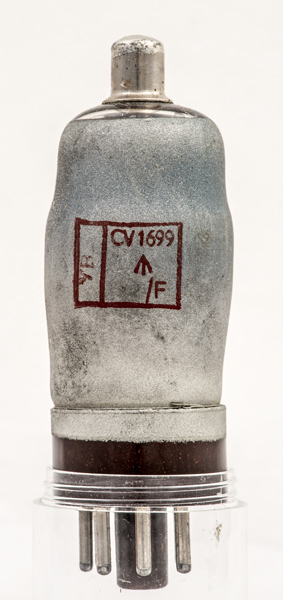

The /F identifies the maker as STC, Paignton.

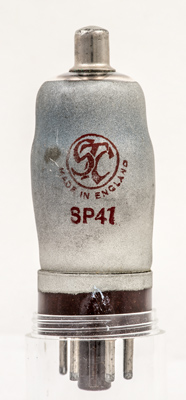

The STC logo and the SP41 Type designation.
The classic envelope is 32 mm in diameter and, excluding the MO base pins, is 79 mm tall.
Reference: Data-sheet. Type CV1699 was first introduced in 1938. See also 1938 adverts.



Pin Connections
MO
1
2
3
4
5
6
7
8
tc
h
k
a
g2
g3
m
nc
h
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
4.0
0.95
250
250
-1.5
10.9
2.7
0.7M
8.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated May 30, 2025.
