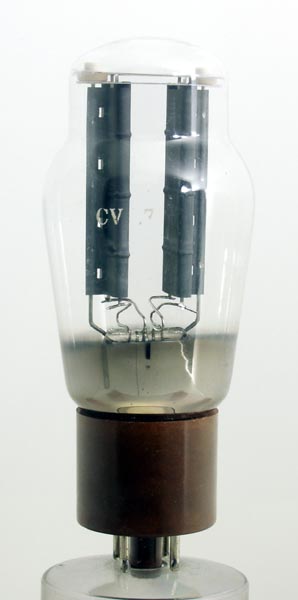

Type CV717 is a high voltage power full wave rectifier and was designed for providing HT in low power transmitters.

The output rating is 180 Watts with a maximum reservoir capacitor of 4 µF. The rectifier needs a series resistance of 250 Ohms to limit peakcurrent.

The classic envelope is 48 mm diameter at its maximum and excluding the IO base pins the length is 116 mm.


Pin Connections

IO	1	2	3	4	5	6	7	8
	-	f	-	a(2)	-	a(1)	-	f


Absolute Maximum Operating Conditions

Rectifier	Vh	Ah	Va	mAa
	5.0	2.0	750	250
