This exhibit is a 6AU6 RF pentode for use up to 50 MHz.

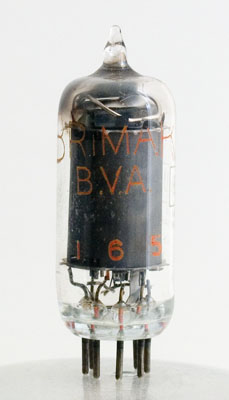

The manufacturers have used two colour printing for the envelope.

The thin glass tube envelope is 17 mm in diameter and excluding the B7G base pins the valve is 46 mm tall.


Pin Connections

B7G	1	2	3	4	5	6	7
	g1	g3,s	h	h	a	g2	k


Absolute Maximum Operating Conditions

Pentode	Vh	Ah	Va	Vs	Vg	mAa	mAs	ra	gm
	6.3	0.3	250	150	-1	10.6	4.3	1.0M	5.2

Thanks to Frank Philipse for supplying the above datasheet
