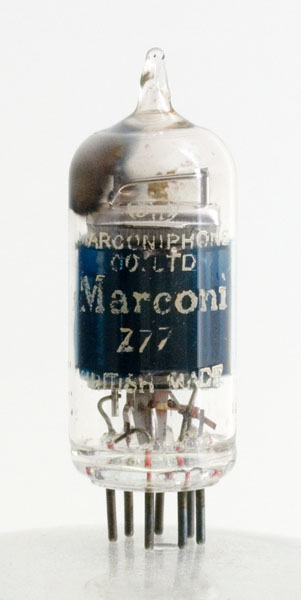

The Z77 from M-OV was another designation for the ubiquitous EF91 of the early 1950s. In this exhibit the lettering proclaims a commercial brand of Marconi products. See also Z77 with a paper label.

The design offers high gain, high impedance, high slope, in a screened pentode.

The electrodes fill the width of the valve. The three grids can be clearly seen and all grids have separate pins.

The thin glass tube envelope is 17 mm in diameter and, excluding the B7G base pins, is 46 mm tall.


Pin Connections

B7G	1	2	3	4	5	6	7
	g1	k	h	h	a	g3	g2


Absolute Maximum Operating Conditions

Pentode	Vh	Ah	Va	Vs	Vg	mAa	mAs	ra	gm
	6.3	0.3	250	250	-2	10	2.5	1M	7.6

Thanks to Frank Philipse for supplying the above datasheet
