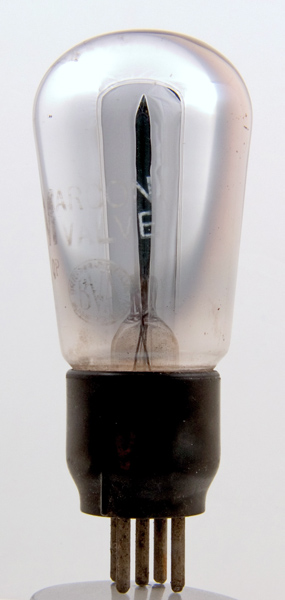

This ML4 looks to be an early example as it is enclosed in a balloon envelope. We have another ML4 in the later classic envelope.

Although sometimes listed as a triode output valve, the ML4 was the definitive descendent of the famous (or infamous) Type KL1 of 1926 and was primarily a professional and military type, little used in domestic radios.

The ML4 was quite widely used as an RF oscillator, as a single-valve phase splitter, and as a driver for larger valves.

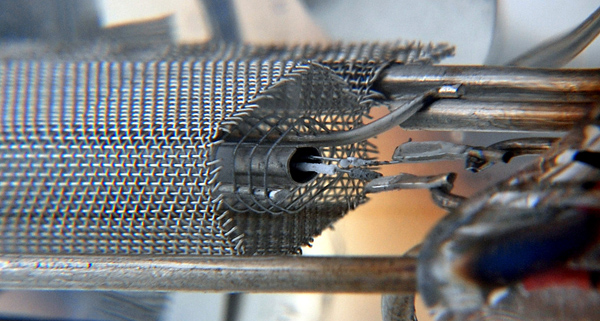

As close a view as is possible with the Olympus E20 plus 4 dioptre lenses.

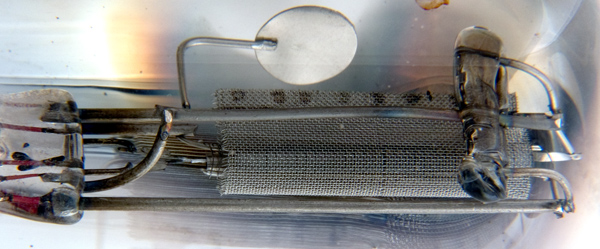

The mesh anode, grid, cathode tube and heater are all visible.

The Marconi Valve logo is etched into the envelope as is the BVA logo.

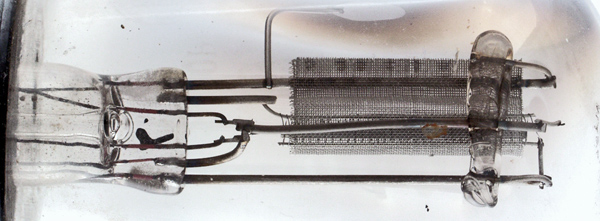

This close-up was taken with a new Nikon D80 camera. The electrodes are fully revealed.

The balloon envelope is 50 mm in diameter and, excluding the B5 base pins, is 105 mm tall.


Pin Connections

B5	1	2	3	4	5
	a	g	h	h	k


Absolute Maximum Operating Conditions

Triode	Vh	Ah	Va	Vg	mAa	ra	gm	Pout
	4.0	1.0	200	-13.5	17	3,700	2.7	0.65W

Thanks to Frank Philipse for supplying the above datasheet
