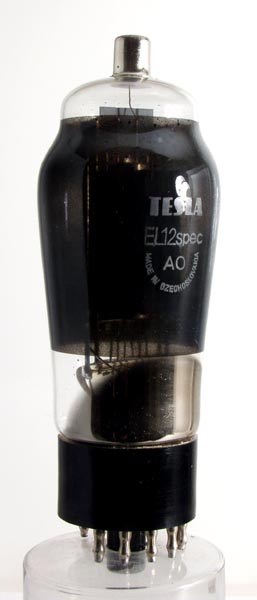

The EL12Spec was made by the Czechoslovakian manufacturer Tesla. It is an Audio output pentode and the naming convention of EL12 follows the Philips/Mullard principles. So we also know that this valve has a 6.3 Volt heater.

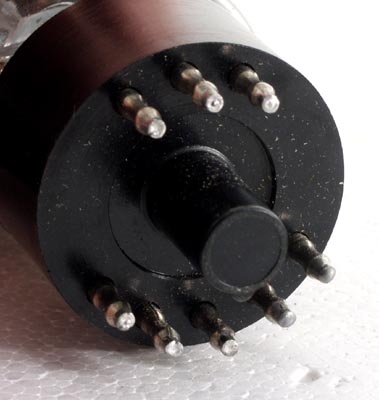

The Footless base is a continental that is rarely seen in UK made equipment.

The classic envelope is 44 mm in diameter and, excluding the Footless base pins, is 117 mm tall.


Pin Connections

Footless	1	2	3	4	5	6	7	8	tc
	-	g1	k,g3	-	h	h	-	g2	a


Absolute Maximum Operating Conditions

Pentode	Vh	Ah	Va	Vs	Vg	mAa	mAs	ra	gm
	6.3	1.2	425	425	-1.3	42.0	5.0	50,000	10.0

Thanks to Frank Philipse for supplying the above datasheet
