The CV2224 is a gas filled trigger tube and functions in a similar way to a thyratron in that a control voltage at a critical level will initiate an ionization of the gas across the main gap and cause a rapid breakdown of the gap resistance.

See G1/371K for details.

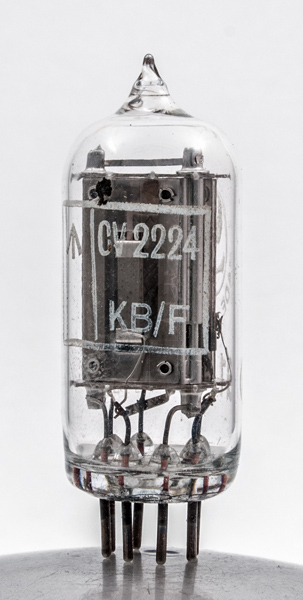

The thin glass tube envelope is 18 mm in diameter, and excluding the B7G base pins is 44 mm tall.


Pin Connections

B7G	1	2	3	4	5	6	7
	k(p)	k	s	a	s	t	a(p)

This exhibit was last updated on 20 December 2006
