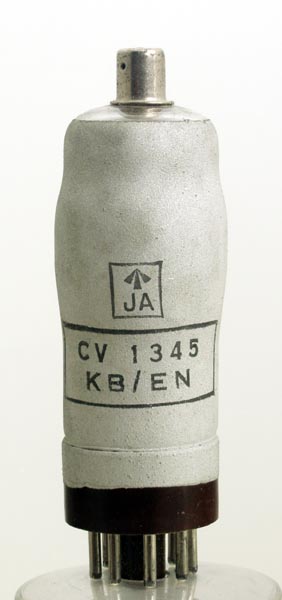

The CV1345 is a triode pentode frequency changer for battery operated receivers.

The classic envelope is 32 mm in diameter, and excluding the MO base pins, is 87 mm tall.


Pin Connections

MO	1	2	3	4	5	6	7	8	tc
	f-	-	a	a(t)	g1(t),g3	m	g2	f+	g1


Absolute Maximum Operating Conditions

Pentode	Vh	Ah	Va	Vs	Vg	mAa	mAs	ra	gm
	2.0	0.2	120	60	-1.5	0.58	0.92	1.3M	0.26

Triode	Va	mAa
	80	2.5
