This exhibit is a Cossor V10. Sadly we can find no details about this valve.

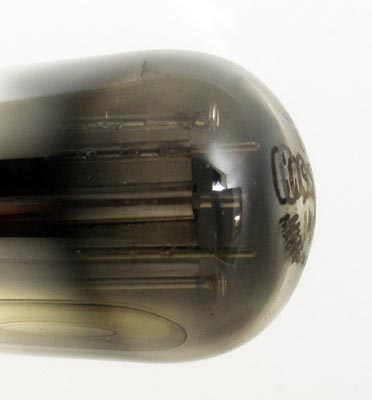

The lettering is distorted by the mirror gettering on the inside of the glass but seen directly shows the type as a V10.

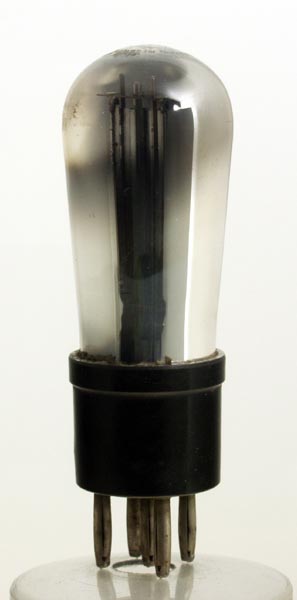

The flat anode can be seen at this angle. The cathode is oxide coated.
The balloon envelope is 30 mm in diameter and, excluding the B5 base pins, is 78 mm tall.
This exhibit was last updated on 13 August 2005
