The G240/2D is a cold cathode Thyratron. When conducting the voltage drop across the valve is 90 Volts. The discharge is initiated by a voltage on the trigger electrode. The trigger voltage was not given in our literature.

See also CV2174

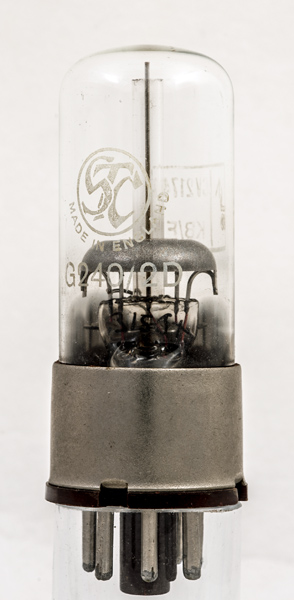

The wide glass tube envelope is 27 mm in diameter, and excluding the IO base pins, is 73 mm tall.


Pin Connections

IO	1	2	3	4	5	6	7	8
	Base Shell	-	a	-	tr	ic	ic	k


Absolute Maximum Operating Conditions

Thyratron	Va	mAa
	240	50

Thanks to Frank Philipse for supplying the above datasheet
