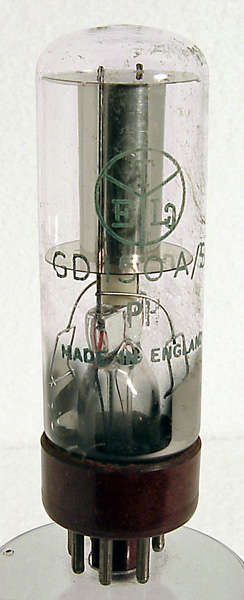

The GD150A/s is a gas filled discharge valve that exhibits a near constant voltage across the valve for currents within the range 5mA to 40mA. The regulation is 150 plus or minus 5.5 Volts.

The construction is of a central cold cathode within a cylindrical anode.

The wide glass tube envelope is 28 mm in diameter and, excluding the IO base pins, is 86 mm tall.


Pin Connections

IO	1	2	3	4	5	6	7	8
	nc	k	7	nc	a	nc	3	nc


Absolute Maximum Operating Conditions

Stabiliser	Va	Vstab	mAa
	180	150	5-40

Thanks to Frank Philipse for supplying the above datasheet
