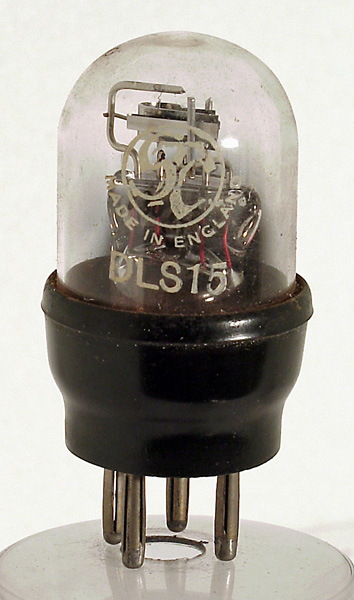

The DLS15 is a bi-metallic strip delay switch. The switch contacts operated and HT was applied to the protected circuit after the pre-set delay caused by the time the heater took to heat the bi-metallic strip to the point where the differential expansion of the metals caused it to bend sufficiently to contact the fixed post.

See DLS16 for the same switch but with a 6.3 Volt heater.

The wide glass tube envelope is 30 mm in diameter and, excluding the B4 base pins, is 55 mm tall.


Pin Connections

B4	1	2	3	4
	fc	mc	f	f


Absolute Maximum Operating Conditions

Delay	Vh	Ah	Va	mAa
	4.0	0.75	240	5,000

Thanks to Frank Philipse for supplying the above datasheet
