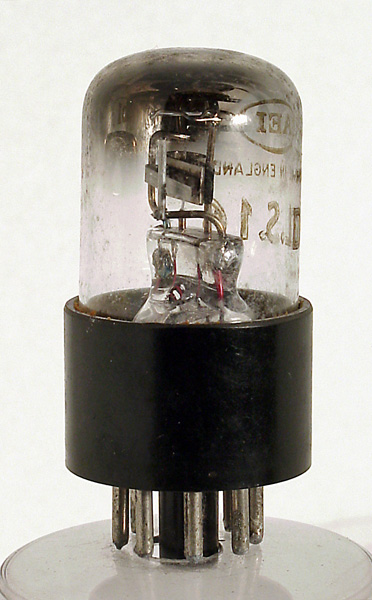

The DLS16 is bi-metallic strip delay switch. After the pre-set delay the moving contact touches the fixed contact and HT is applied to the protected circuit, ususlly a mercury vapour rectifier.

See also DLS15 for the same switch but with a 4 Volt heater.

The wide glass tube envelope is 28 mm in diameter and, excluding the IO base pins, is 54 mm tall.


Pin Connections

IO	1	2	3	4	5	6	7	8
	-	f	-	mc	-	gc	-	f


Absolute Maximum Operating Conditions

Delay	Vh	Ah	Va	mAa
	6.3	0.48	240	5,000

Thanks to Frank Philipse for supplying the above datasheet
