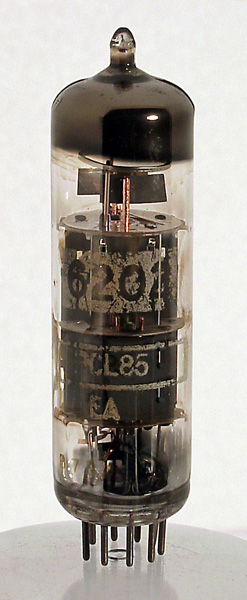

The ECL85 is purpose designed for frame generation in television receivers. The triode provides the oscillator and the pentode is optimised for pulse output operation into the magnetic load of the scanning coils.

The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 68 mm tall.


Pin Connections

B9A	1	2	3	4	5	6	7	8	9
	a(t)	g1(t)	k(t)	h	h	a	g2	k,g3,s	g1


Absolute Maximum Operating Conditions

Pentode	Vh	Ah	Va	Vs	Vg	mAa	mAs
	6.3	0.3	65	210	-1	285	45

Triode	Va	Vg	mAa	ra	gm
	100	0	10	9,000	5.5

Thanks to Frank Philipse for supplying the above datasheet
