Beam Tetrodes and the 807
collections G8LSD Valve Collection |

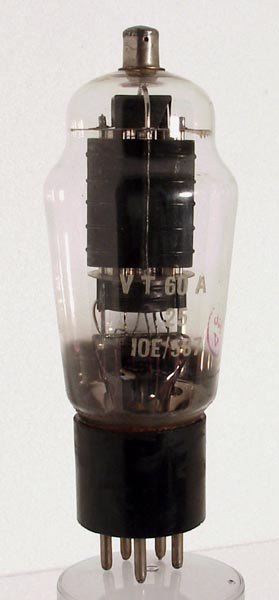

This military valve is electrically equivalent to an 807. It could therefore be used at audio or for RF power generation up to 30 MHz.
The base is a special five pin type. The valve employs a flat cathode, two wire inner grids and beam forming plates, within a carbonised oval anode cylinder.
The classic envelope is 48 mm in diameter, and excluding the special base's pins is 124 mm tall.
This exhibit was last updated on 12 January 2004
