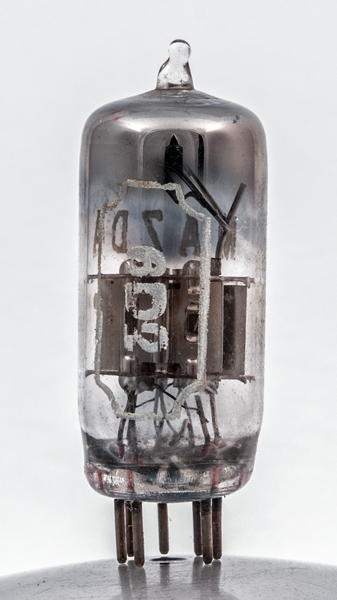

The 6D2 is the Mazda equivalent of the Mullard EB91, and consists of two separate signal diodes in the envelope.
The diodes were designed for vision and sound detection in television receivers. Additionally they are recommended for limiting and DC restoration.
This thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 43 mm tall.
Pin Connections
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
|
k(1) |
a(2) |
h |
h |
k(2) |
s |
a(1) |
Absolute Maximum Operating Conditions
|
Vh |
Ah |
Va |
mAa |
|
6.3 |
0.3 |
150 |
9 |
