The EM34 is a dual shadow magic eye tuning indicator.

Mullard describe this device as suited to both receiver tuning indication and test equipment null indications. The grid voltage change is 0 - 5 volts and 0 - 16 volts. The display is viewed end on.

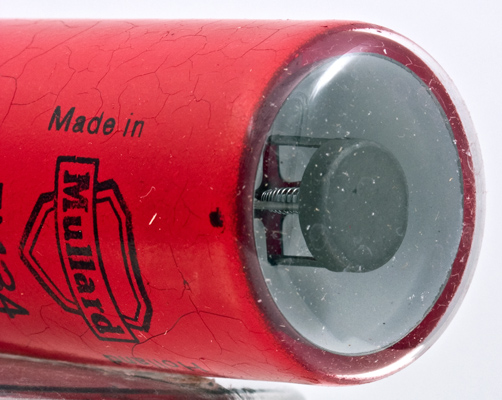

The magnificent picture above of a working EM34 was donated by Achim van Duren.

The wide glass envelope is 26 mm in diameter and, excluding the IO base pins is 72 mm tall.


Pin Connections

IO	1	2	3	4	5	6	7	8
	-	h	a(1)	g1	t	a(2)	h	k


Absolute Maximum Operating Conditions

CRT	Vh	Ah	Va	mAa
	6.3	0.2	250	0.75
