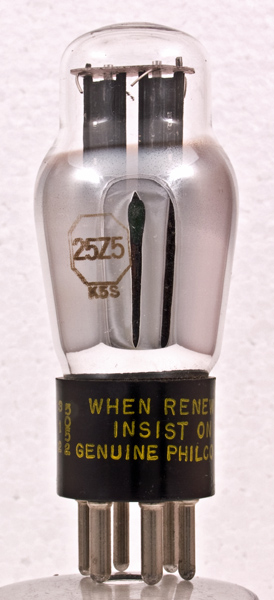

The 25Z5 is another unusual exhibit, within the envelope, sharing a common heater, are two independent rectifiers. From the heater current of 0.3 Amps it is clear that this valve was for HT rectification in TV systems. Probably used in parallel directly from the mains. The other possibility is for use on 110 Volt mains in a voltage doubler configuration.

The maximum reservoir capacitor is quoted at 16 µF.

The classic envelope is 36 mm in diameter and, excluding the UX6 base pins, is 88 mm tall.


Pin Connections

UX6	1	2	3	4	5	6
	h	a(2)	k(2)	k(1)	a(1)	h


Absolute Maximum Operating Conditions

Rectifier	Vh	Ah	Va	mAa
	25	0.3	235	150

Thanks to Frank Philipse for supplying the above datasheet
