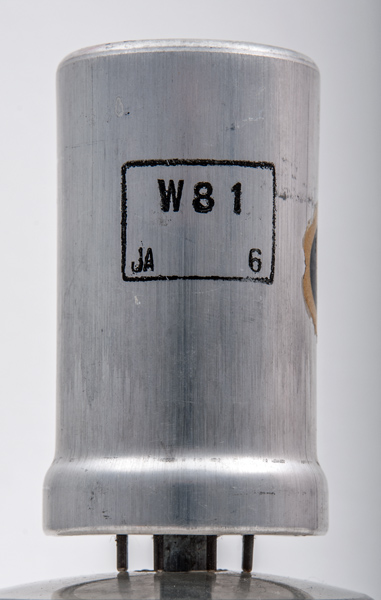

The W81 is a variable μ amplifier pentode on a Loctal (B8B) base. Use would be at RF or IF frequencies in receiver equipment. The W101 is the same valve but fitted with a 100 mA heater (at 19 Volts).![](../pics/aby0037a.jpg)

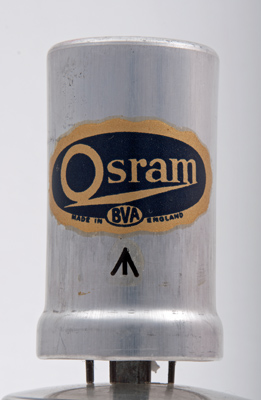

The Osram paper label shows the BVA logo.The wide glass tube envelope is 32 mm in diameter, and excluding the B8B base pins is 59 mm tall.Reference: 1040. Type W81 was first introduced in 1947. See also 1947 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | ![](../static/key.gif) h | a | g2 | g3 | s | g1 | k | h |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | ra | gm | ![](../static/key.gif)
| 6.3 | 0.3 | 250 | 100 | -3.6 | 9.6 | 3.6 | - | 2.8 |
|
