1LA6Sensibly equivalent¶ to:CV775See also:
|
|
|
The 1LA6 is a heptode mixer for use in battery portable receivers. The figures given as for a triode are for the oscillator formed between the cathode, grid 1 and grid 2 acting as the oscillator anode.![](../pics/aaa0892a.jpg)

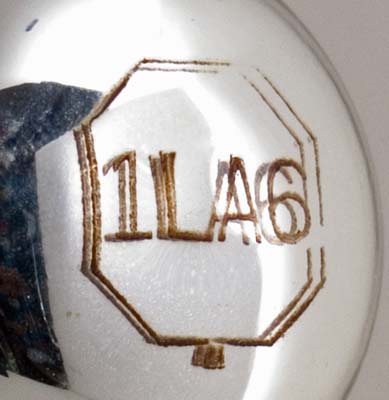

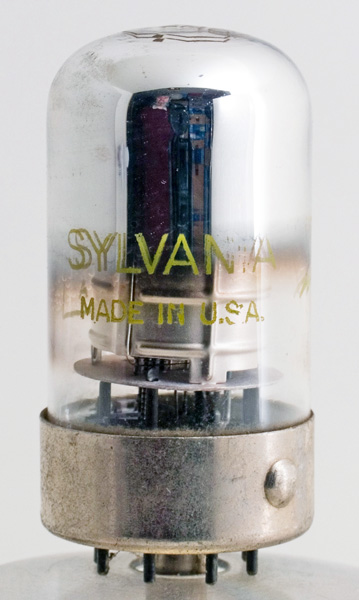

The type designation is etched into the envelope dome.The wide glass tube envelope is 28 mm in diameter, and excluding the B8B base pins is 55 mm tall.References: Data-sheet, 3002, 1040 & 1040. Type 1LA6 was first introduced in 1939. See also 1939 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | ![](../static/key.gif) f+ | a | g2 | g1 | g3,g5 | g4 | nc | f- |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | ra | gm | ![](../static/pdflogo.gif)
| 1.4 | 0.05 | 90 | 45 | 0 | 0.55 | 0.6 | 0.75M | 0.25 |
|
Absolute Maximum Operating Conditions¶
| Va | mAa | ![](../static/key.gif)
| 90 | 1.2 |
|
