DL69Sensibly equivalent¶ to:CV2361See also:
|
|
|
The DL69 is a subminiature output pentode suitable for battery operation with an HT supply of 90 Volts. This is the Mullard description of this audio beam tetrode.![](../pics/aaa0653a.jpg)

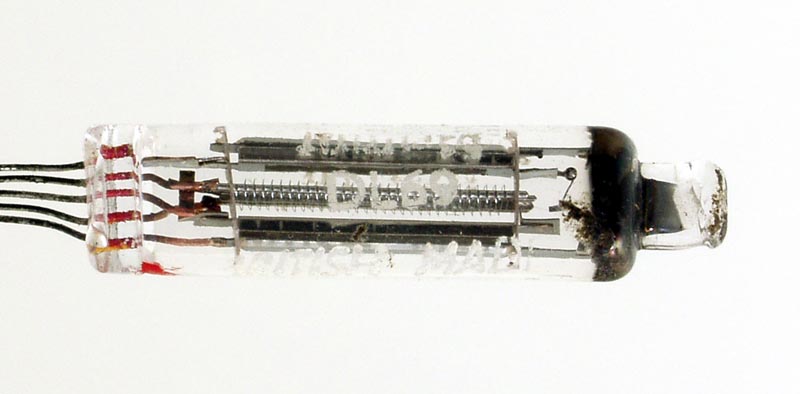

The beam plates and the rectangular hole in them is easily seen as is the single hairpin filament.The output power at 10% distortion is between 25 and 50 mW. The connections are taken looking at the base with the red dot on the left.The oval miniature glass envelope is 5 x 9 mm in plan, and excluding the lead-out wires is 37 mm tall.References: Data-sheet & 1040. Type DL69 was first introduced in 1956. See also 1956 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | ![](../static/key.gif) a | g2 | f-,g3 | 1 | f+,g3 |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | ra | gm | ![](../static/pdflogo.gif)
| 1.25 | 0.025 | 90 | 90 | -2.5 | 1.75 | 0.4 | .8M | 0.85 |
|
PDF scanned from an original document held by the museum |
